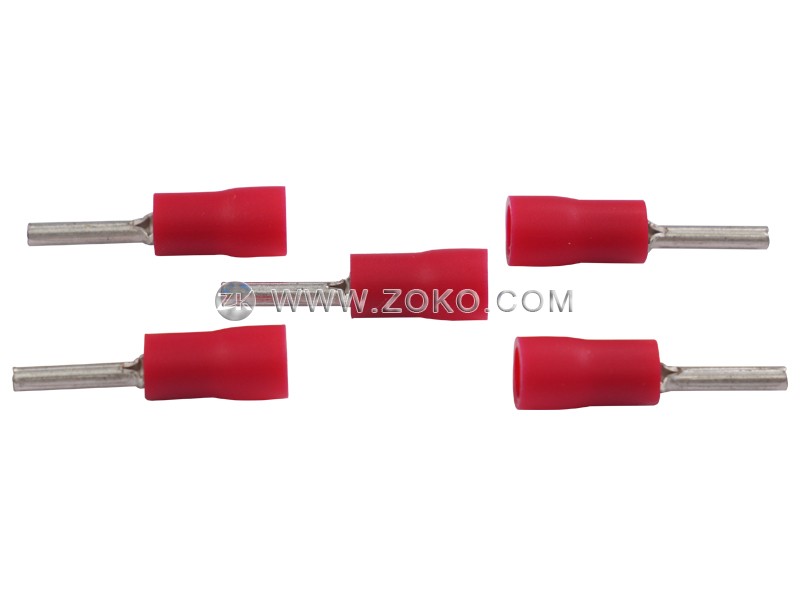

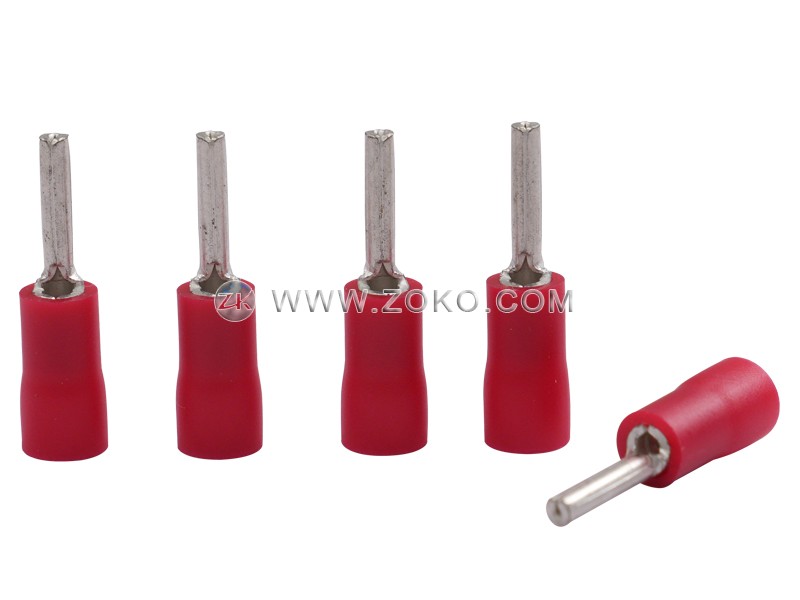

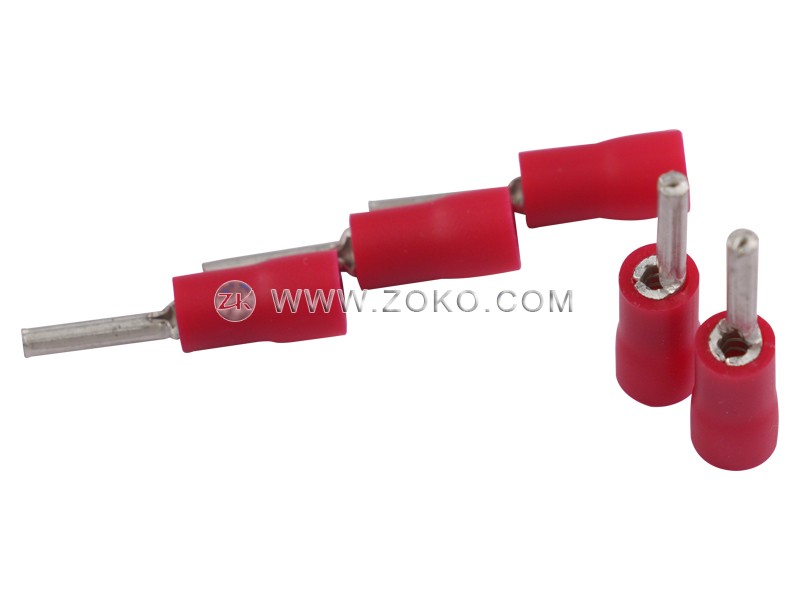

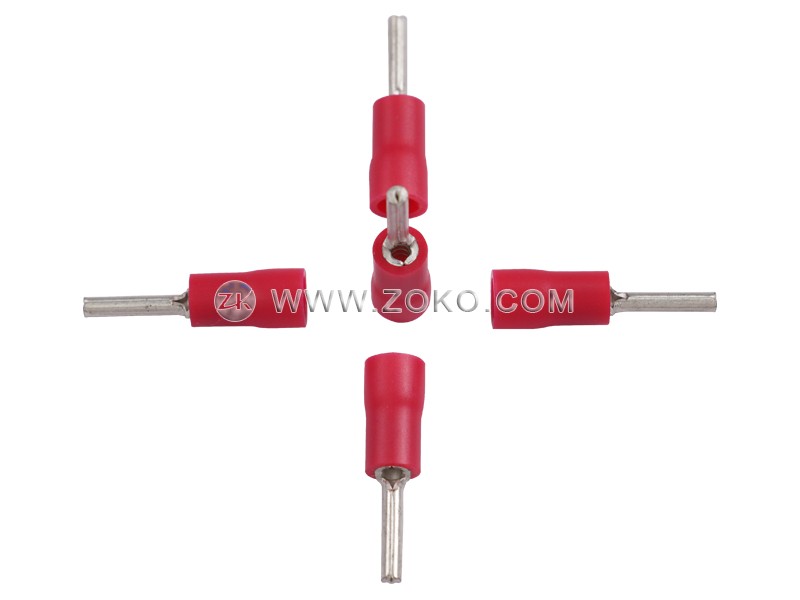

Vinyl-Insulated Pin Terminal

Vinyl-Insulated Pin Terminal

Vinyl-Insulated Pin Terminal

Vinyl-Insulated Pin Terminal

Vinyl-Insulated Pin Terminal

Model：PTV 1.25-10
Brand：KINGSING
Voltage：220V (Can be customized)
Function：
Price：

Item No	Cable Size A.W.G	Thickness(mm)	Max Current	Dimensions(mm)					Color
Item No	Cable Size A.W.G	Thickness(mm)	Max Current	W	L	E	F	DФ	Color
PTV 1.25-10	0.5~1.5(22~16)	0.75	19A	1.9	20.7	10.7	10.0	4.2	red
PTV 1.25-12				1.9	22.7	10.7	12.0
PTV 1.25-13				1.9	23.7	10.7	13.0
PTV 1.25-18				1.9	28.7	10.7	18.0
PTV 2-10	1.5~2.5(16~14)	0.8	27A	1.9	20.7	10.7	10.0	4.9	blue
PTV 2-12				1.9	22.7	10.7	12.0
PTVN 2-13				1.9	23.7	10.7	13.0
PTV 2-18				1.9	28.7	10.7	18.0
PTV 3.5-10	2.5~4(14~12)	1.0	36A	2.8	23.8	13.8	10.0	5.8	black
PTV 3.5-13	2.5~4(14~12)	1.0	36A	2.8	26.3	13.8	13.0	5.8	black
PTV 5.5-13	4~6(12~10)	1.0	48A	2.6	27.0	14.0	13.0	6.5	yellow

KINGSING

Terminal Body:Copper

Insulation:Vinyl

Plating:Tin
